OMH310 - MOSFET

OMH310 Description

OMH310 OMH315 DUAL, LOW VOLTAGE, LOW RDS(on), MOSFET H-BRIDGE CIRCUIT IN A PLASTIC PACKAGE Dual 50 Volt, 15 And 20 Amp H-Bridge With Current And Temp.
This series of MOSFET switches is configured as a Dual H-Bridge with common VDD lines, precision series shunt resistor in the source line, and sensing.

OMH310 Applications

* where size, performance, and efficiency are key. http://www. DataSheet4U. net/ 2.1 MAXIMUM RATINGS (TC = @ 25°C) Part Number OMH310 OMH315 VDS (Volts) 50 50 RDS(on) (m ) 100 70 ID (Amps) 15 20 Package MP-3 MP-3 ABSOLUTE MAXIMUM RATINGS (TC = @ 25°C unless otherwise noted) Parameter Drain Source Vol

📥 Download Datasheet

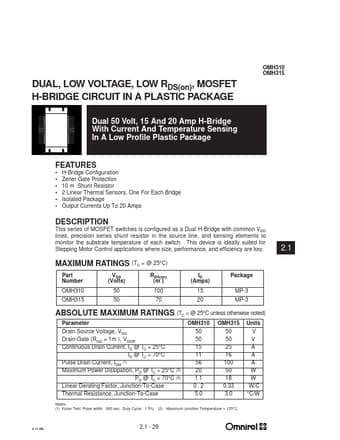

Preview of OMH310 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OMH310
Manufacturer
Omnirel
File Size
98.08 KB
Datasheet
OMH310_Omnirel.pdf
Description
MOSFET
