OMH315

MOSFET

OMH315 Features

* H-Bridge Configuration Zener Gate Protection 10 m Shunt Resistor 2 Linear Thermal Sensors, One For Each Bridge Isolated Package Output Currents Up To 20 Amps DESCRIPTION This series of MOSFET switches is configured as a Dual H-Bridge with

OMH315 General Description

This series of MOSFET switches is configured as a Dual H-Bridge with common VDD lines, precision series shunt resistor in the source line, and sensing elements to monitor the substrate temperature of each switch. This device is ideally suited for Stepping Motor Control applications where size, perfo.

OMH315 Datasheet (98.08 KB)

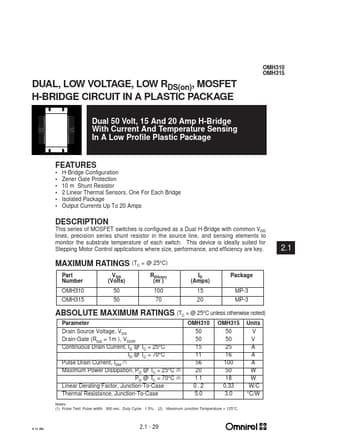

Preview of OMH315 PDF

Datasheet Details

Part number:

OMH315

Manufacturer:

Omnirel

File Size:

98.08 KB

Description:

Mosfet.
OMH310 OMH315 DUAL, LOW VOLTAGE, LOW RDS(on), MOSFET H-BRIDGE CIRCUIT IN A PLASTIC PACKAGE Dual 50 Volt, 15 And 20 Amp H-Bridge With Current And Temp.
