OPI120 Datasheet, Isolator, TT

OPI120 Features

  • Isolator
  • 15 kV dc electrical isolation
  • Choice of phototransistor or photodarlington output
  • Hermetically sealed LED and photosensor
  • Base contact for conve

PDF File Details

Part number:

OPI120

Manufacturer:

TT

File Size:

372.61kb

Download:

📄 Datasheet

Description:

Optically coupled isolator. Each Optoisolator in this data sheet contains an infrared Light Emitting Diode (LED) and a NPN silicon Photosensor. The OPI120 has

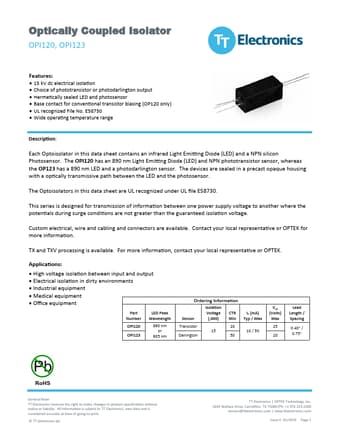

Datasheet Preview: OPI120 📥 Download PDF (372.61kb)
Page 2 of OPI120 Page 3 of OPI120

OPI120 Application

  • Applications
  • High voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial eq
