OPI125TXV

OPTICALLY COUPLED ISOLATOR

OPI125TXV Features

* High current transfer ratio

* 15 kV electrical isolation

* Direct TTL/LSTTL interface

* High noise immunity

* Data rates to 250 KBaud Description: Each OPI125TX and OPI125TXV is an optically coupled isolator that consists of a gallium aluminum arsenide infrared light emitting

OPI125TXV General Description

Each OPI125TX and OPI125TXV is an optically coupled isolator that consists of a gallium aluminum arsenide infrared light emitting diode (OP235 TX or OP235TXV) and a monolithic integrated circuit which incorporates a photodiode, a linear amplifier and a Schmitt trigger on a single die (OPL800TX or O.

OPI125TXV Datasheet (605.65 KB)

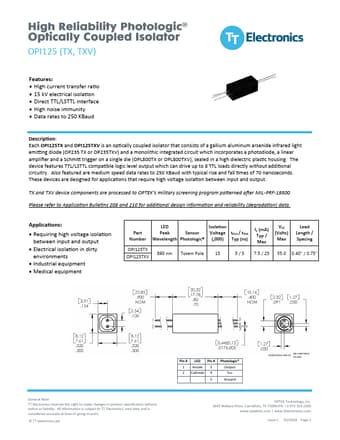

Preview of OPI125TXV PDF

Datasheet Details

Part number:

OPI125TXV

Manufacturer:

TT

File Size:

605.65 KB

Description:

Optically coupled isolator.
