OPI125 Datasheet, Isolator, TT

OPI125 Features

  • Isolator
  • Multiple output options
  • 15 kV dc input-to-output isolation voltage
  • Direct TTL/STTL interface
  • High noise immunity
  • Data rates to 250 KB

PDF File Details

Part number:

OPI125

Manufacturer:

TT

File Size:

692.77kb

Download:

📄 Datasheet

Description:

Optically coupled isolator. Each OPI125, OPI126, and OPI128 consists of an optically coupled isolator with a gallium arsenide infrared emitting diode coupled t

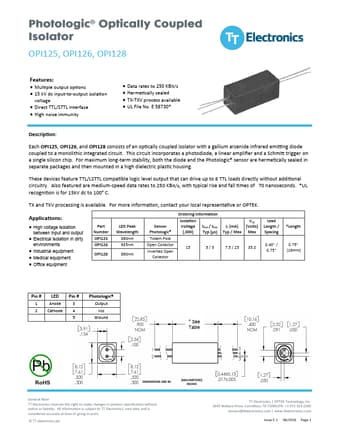

Datasheet Preview: OPI125 📥 Download PDF (692.77kb)
Page 2 of OPI125 Page 3 of OPI125

OPI125 Application

  • Applications
  • High voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial eq
