RJL-001 - Single 10/100 BASE-TX Filtered Connector Module

Datasheet Details

Part number	RJL-001
Manufacturer	Taimag
File Size	432.41 KB
Description	Single 10/100 BASE-TX Filtered Connector Module
Datasheet	RJL-001_Taimag.pdf

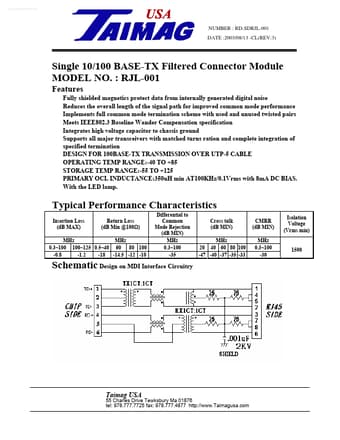

Fully shielded magnetics protect data from internally generated digital noise Reduces the overall length of the signal path for improved common mode performance Implements full common mode termination scheme with used and unused twisted pairs Meets IEEE802.3 Baseline Wander Compensation specification Integrates high voltage capacitor to chassis ground Supports all major transceivers with matched turns ration and complete integration of specified termination DESIGN FOR 100BASE-TX.
