TS10P05G, TS10P01G Glass Passivated Bridge Rectifiers

TS10P05G Description

TS10P01G THRU TS10P07G Single Phase 10.0 Amps.Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 10.0 Amperes TS-6P C .118(3.0.

TS10P05G Features

* UL Recognized File # E-96005 Glass passivated junction Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 Surge overload rating to 170 amperes peak High case dielectric strength of 2000VRMS Isolated voltage fr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TS10P05G, TS10P01G. Please refer to the document for exact specifications by model.

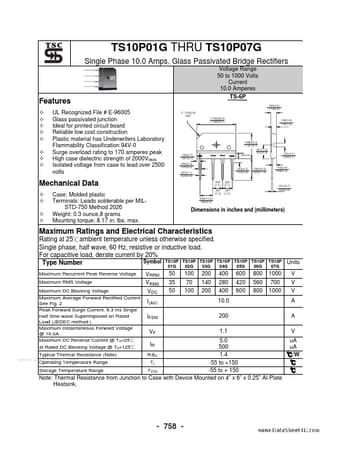

datasheet Preview Page 2

Datasheet Details

Part number
TS10P05G, TS10P01G
Manufacturer
Taiwan Semiconductor Company
File Size
72.27 KB
Datasheet
TS10P01G_TaiwanSemiconductorCompany.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: TS10P05G, TS10P01G.
Please refer to the document for exact specifications by model.
