TSC5327 - High Voltage NPN Transistor

Product Overview

Taiwan Semiconductor Company

Part number	TSC5327
Manufacturer	Taiwan Semiconductor Company
File Size	91.42 KB
Description	High Voltage NPN Transistor
Datasheet	TSC5327 Datasheet

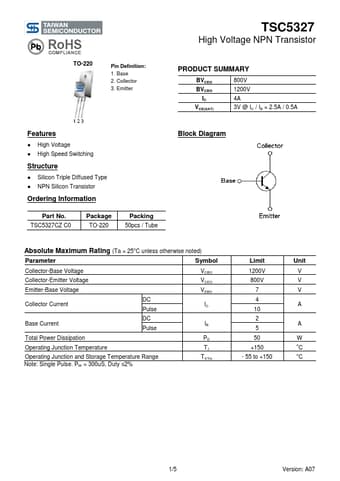

Additional preview pages of the TSC5327 datasheet.

High Voltage High Speed Switching Block Diagram Structure.
Silicon Triple Diffused Type NPN Silicon Transistor Ordering Information Part No. TSC5327CZ C0 Package TO-220 Packing 50pcs / Tube Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Power Dissipation Operating Junction Temperature Operating Junction and Storage Temperature Range Note: S.
