TSC5305D, High Voltage NPN Transistor

www.DataSheet4U.com Preliminary TSC5305D High Voltage NPN Transistor with Diode TO-263 Pin assignment: 1.Base 2.Collector 3.Emitter BVCEO = 400V.

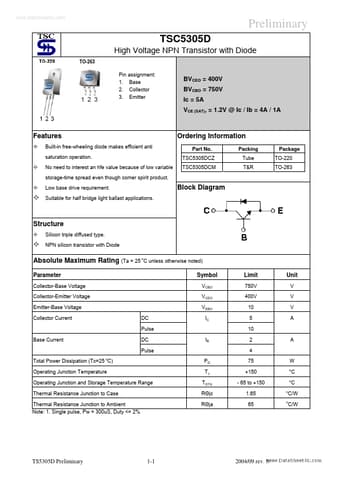

datasheet Preview Page 1 from Datasheet4u.com

TSC5305D_TaiwanSemiconductor.pdf

TSC5305D Datasheet Preview — Preview of TSC5305D PDF

Datasheet Details

Part number:

TSC5305D

Manufacturer:

Taiwan Semiconductor

File Size:

121.35 KB

Description:

High Voltage NPN Transistor

Applications

* Ordering Information Part No. TSC5305DCZ TSC5305DCM Packing Tube T&R Package TO-220 TO-263 Block Diagram Structure Silicon triple diffused type. NPN silicon transistor with Diode Absolute Maximum Rating (Ta = 25 oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Volta
