TSC5304ED Datasheet - Taiwan Semiconductor

High Voltage NPN Transistor

TSC5304ED Features

* Build-in Free-wheeling Diode Makes Efficient Antisaturation Operation Low Base Drive Requirement Suitable for Half Bridge Light Ballast Application Block Diagram Structure

* Silicon Triple Diffused Type NPN Silicon Transistor Integrated Anti-parallel Collector-Emi

TSC5304ED General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSC5304ED Datasheet (270.16 KB)

TSC5304ED Datasheet Preview — Preview of TSC5304ED PDF

Datasheet Details

Part number:

TSC5304ED

Manufacturer:

Taiwan Semiconductor

File Size:

270.16 KB

Description:

High voltage npn transistor.

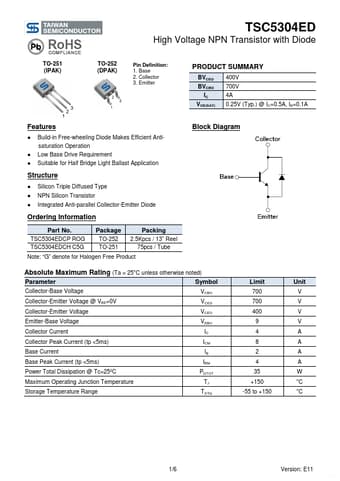

TSC5304ED High Voltage NPN Transistor with Diode TO-251 (IPAK) TO-252 (DPAK) Pin Definition: 1. Base 2. Collector 3. Emitter PRODUCT SUMMARY BVCEO BV.
