TSS40L - Surface Mount Schottky

Datasheet Summary

Description

DIM.

Features

  • - Designed for mounting on small surface - Extremely thin / leadless package - Low capacitance - Low forward voltage drop - Packing code with suffix "G" means green compound (halogen-free) TSS40L Taiwan Semiconductor.

📥 Download Datasheet

Datasheet preview – TSS40L

Datasheet Details

Part number TSS40L
Manufacturer Taiwan Semiconductor Company
File Size 165.65 KB
Description Surface Mount Schottky
Datasheet download datasheet TSS40L Datasheet
Additional preview pages of the TSS40L datasheet.

📁 Similar Datasheet

  • TSS42L - Surface Mount Schottky (Taiwan Semiconductor)
  • TSS42U - Surface Mount Schottky Barrier (Taiwan Semiconductor)
  • TSS43L - Surface Mount Schottky (Taiwan Semiconductor)
  • TSS43U - Surface Mount Schottky Barrier (Taiwan Semiconductor)
  • TSS461 - Van Controller Serial Interface (TEMIC Semiconductors)
  • TSS461C - Van Controller Serial Interface (TEMIC Semiconductors)
  • TSS461C - VAN Data Link Controller (ATMEL Corporation)
  • TSS461CVAN - Van Controller Serial Interface (TEMIC Semiconductors)
  • TSS461F - VAN Data Link Controller (ATMEL Corporation)
  • TSS463 - Van Controller Serial Interface (TEMIC Semiconductors)
Other Datasheets by Taiwan Semiconductor Company
  • TSS40U - Surface Mount Schottky Barrier
  • TSS0340L - Surface Mount Schottky
  • TSS0340U - Surface Mount Schottky Barrier

Full PDF Text Transcription

Click to expand full text

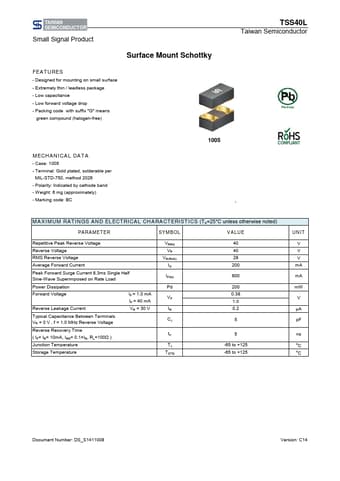

Small Signal Product Surface Mount Schottky FEATURES - Designed for mounting on small surface - Extremely thin / leadless package - Low capacitance - Low forward voltage drop - Packing code with suffix "G" means green compound (halogen-free) TSS40L Taiwan Semiconductor MECHANICAL DATA - Case: 1005 - Terminal: Gold plated, solderable per MIL-STD-750, method 2026 - Polarity: Indicated by cathode band - Weight: 6 mg (approximately) - Marking code: BC 1005 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted) PARAMETER SYMBOL VALUE Repetitive Peak Reverse Voltage Reverse Voltage RMS Reverse Voltage Average Forward Current Peak Forward Surge Current 8.
