1PGSMC5359, 1PGSMC5348 Surface Mount Silicon Zener Diode

1PGSMC5359 Description

1PGSMC5348 - 1PGSMC5369 Taiwan Semiconductor 5W, 11V - 51V Surface Mount Silicon Zener Diode .

1PGSMC5359 Features

* Photo Glass passivated junction
* Low profile package
* Ideal for automated placement
* Low inductance
* Moisture sensitivity level: level 1, per J-STD-020
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 6124

1PGSMC5359 Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding compound meets UL 94 V-0 flammability rating
* Terminal: Matte tin plated leads, solderable per J-STD-002
* Meet JESD 20

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1PGSMC5359, 1PGSMC5348. Please refer to the document for exact specifications by model.

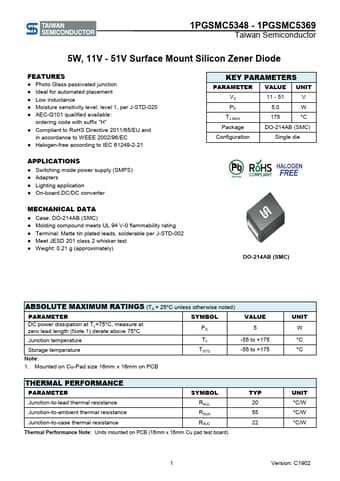

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1PGSMC5359, 1PGSMC5348
Manufacturer
Taiwan Semiconductor
File Size
198.43 KB
Datasheet
1PGSMC5348-TaiwanSemiconductor.pdf
Description
Surface Mount Silicon Zener Diode
Note
This datasheet PDF includes multiple part numbers: 1PGSMC5359, 1PGSMC5348.
Please refer to the document for exact specifications by model.
