2W01M, 2W005M Datasheet - Taiwan Semiconductor

2W01M, 2W005M, Single Phase 2.0 AMPS. Silicon Bridge Rectifiers

2W005M - 2W10M Single Phase 2.0 AMPS.Silicon Bridge Rectifiers WOB .

2W005M-TaiwanSemiconductor.pdf

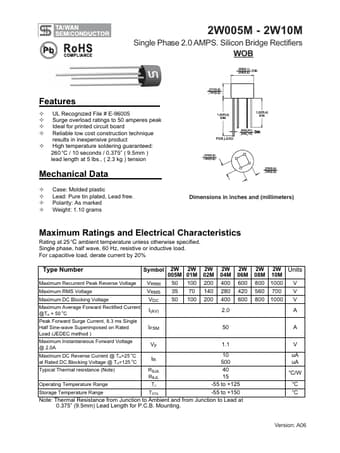

2W01M Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W01M, 2W005M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2W01M, 2W005M

Manufacturer:

Taiwan Semiconductor

File Size:

162.14 KB

Description:

Single Phase 2.0 AMPS. Silicon Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: 2W01M, 2W005M.
Please refer to the document for exact specifications by model.

Features

* UL Recognized File # E-96005 Surge overload ratings to 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mecha
