2W02, 2W005 Single Phase 2.0 AMPS. Silicon Bridge Rectifiers

Taiwan Semiconductor

Description

2W005 - 2W10 Single Phase 2.0 AMPS.Silicon Bridge Rectifiers WOB .

📥 Download Datasheet

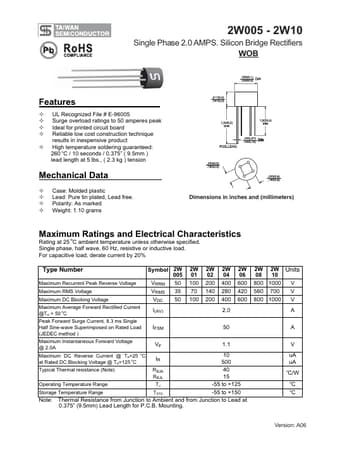

2W02 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W02, 2W005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2W02, 2W005
Manufacturer: Taiwan Semiconductor
File Size: 161.22 KB
Datasheet: 2W005-TaiwanSemiconductor.pdf
Description: Single Phase 2.0 AMPS. Silicon Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: 2W02, 2W005.
Please refer to the document for exact specifications by model.

Features

* UL Recognized File # E-96005 Surge overload ratings to 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mecha
