BAT43WS 0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode

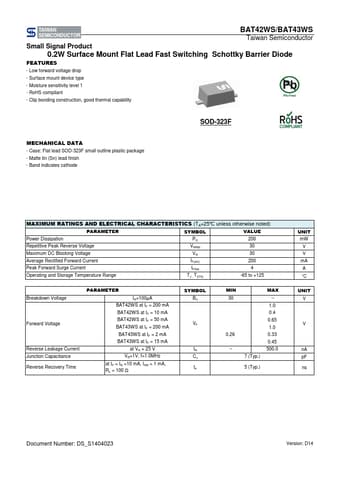

Green compound Green compound Green compound Document Number: DS_S1404023 Version: D14 Small Signal Product DIMENSIONS BAT42WS/BAT43WS Taiwan Semiconductor DIM. A B C D E F Unit (mm) Min Max 1.15 1.35 2.30 2.80 0.25 0.40 1.60 1.80 0.80 1.10 0.05 0.25 Unit (inch) Min Max 0.045 0.053 0.091 0.11.

BAT43WS Features

* - Low forward voltage drop - Surface mount device type - Moisture sensitivity level 1 - RoHS compliant - Clip bonding construction, good thermal capability SOD-323F MECHANICAL DATA - Case: Flat lead SOD-323F small outline plastic package - Matte tin (Sn) lead finish - Band indicates cathode MAXIMUM
