BAT42WS Datasheet - Taiwan Semiconductor

0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode

BAT42WS Features

* - Low forward voltage drop - Surface mount device type - Moisture sensitivity level 1 - RoHS compliant - Clip bonding construction, good thermal capability SOD-323F MECHANICAL DATA - Case: Flat lead SOD-323F small outline plastic package - Matte tin (Sn) lead finish - Band indicates cathode MAXIMUM

BAT42WS General Description

Green compound Green compound Green compound Document Number: DS_S1404023 Version: D14 Small Signal Product DIMENSIONS BAT42WS/BAT43WS Taiwan Semiconductor DIM. A B C D E F Unit (mm) Min Max 1.15 1.35 2.30 2.80 0.25 0.40 1.60 1.80 0.80 1.10 0.05 0.25 Unit (inch) Min Max 0.045 0.053 0.091 0.11.

BAT42WS Datasheet (101.48 KB)

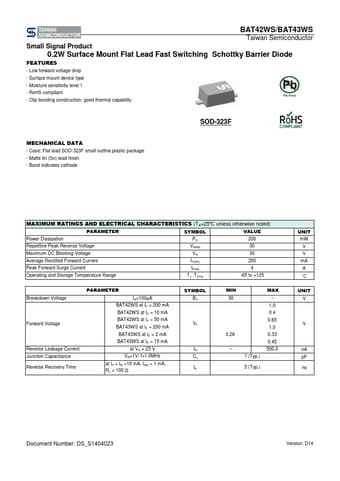

Preview of BAT42WS PDF

Datasheet Details

Part number:

BAT42WS

Manufacturer:

Taiwan Semiconductor

File Size:

101.48 KB

Description:

0.2w surface mount flat lead fast switching schottky barrier diode.
