BAT42WS-V - (BAT42WS-V / BAT43WS-V) Small Signal Schottky Diodes

Product Overview

Vishay Siliconix

📥 Download Datasheet

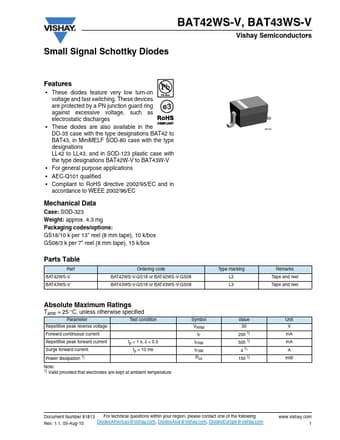

BAT42WS-V (BAT42WS-V / BAT43WS-V) Small Signal Schottky Diodes by Vishay Siliconix - Datasheet Preview — Datasheet preview – BAT42WS-V

Datasheet Details

Part number	BAT42WS-V
Manufacturer	Vishay Siliconix
File Size	123.42 KB
Description	(BAT42WS-V / BAT43WS-V) Small Signal Schottky Diodes
Datasheet	BAT42WS-V Datasheet
Additional preview pages of the BAT42WS-V datasheet.

Product details

Features

These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
These diodes are also available in the DO-35 case with the type designations BAT42 to BAT43, in MiniMELF SOD-80 case with the type designations LL42 to LL43, and in SOD-123 plastic case with the type designations BAT42W-V to BAT43W-V.
For general purpose.
