BAT42WS - Schottky Diodes

BAT42WS Description

BAT42WS/BAT43WS Schottky Diodes SOD-323 .

BAT42WS Features

* Low Forward Voltage Drop Fast Switching Time Surface Mount Package Ideally Suited for Automatic Insertion Also Available in Lead Free Version Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherwise specified. Maximum Ratings Dimensions in inches and (milli

📥 Download Datasheet

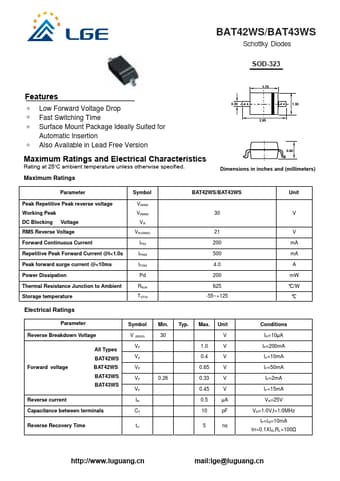

Preview of BAT42WS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT42WS
Manufacturer
LGE
File Size
278.41 KB
Datasheet
BAT42WS-LGE.pdf
Description
Schottky Diodes
