BAT42WS, BAT42WS-WON, SURFACE MOUNT SCHOTTKY BARRIER DIODE

® WON-TOP ELECTRONICS BAT42WS / BAT43WS SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

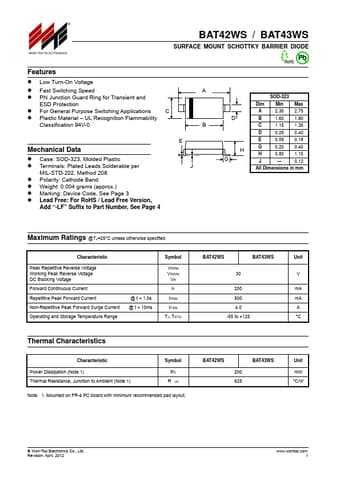

datasheet Preview Page 1 from Datasheet4u.com

BAT42WS-WON-TOP.pdf

BAT42WS Datasheet Preview — This datasheet PDF includes multiple part numbers: BAT42WS, BAT42WS-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAT42WS, BAT42WS-WON

Manufacturer:

WON-TOP

File Size:

83.80 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: BAT42WS, BAT42WS-WON.
Please refer to the document for exact specifications by model.

Features

* Low Turn-On Voltage
* Fast Switching Speed
* PN Junction Guard Ring for Transient and ESD Protection

Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 C A B Mechanical Data
* Case: SOD-323, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.004 grams (approx. )
* Marking: Device C
