GBU605, GBU601 Datasheet - Taiwan Semiconductor

GBU605, GBU601, Glass Passivated Single-Phase Bridge Rectifier

GBU601 * GBU607 Taiwan Semiconductor 6A, 50V - 1000V Standard Bridge Rectifier .
only.

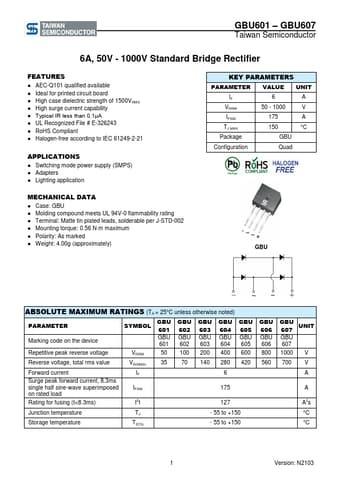

datasheet Preview Page 1 from Datasheet4u.com

GBU601-TaiwanSemiconductor.pdf

GBU605 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU605, GBU601. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBU605, GBU601

Manufacturer:

Taiwan Semiconductor

File Size:

528.47 KB

Description:

Glass Passivated Single-Phase Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: GBU605, GBU601.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Ideal for printed circuit board
* High case dielectric strength of 1500VRMS
* High surge current capability
* Typical IR less than 0.1μA
* UL Recognized File # E-326243
* RoHS Compliant
* Halogen-free according to IEC 61249-2-21 APPLIC

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 6 A 50 - 1000 V IFSM TJ MAX Package 175 A 150 °C GBU Configuration Quad MECHANICAL DATA
* Case: GBU
* Molding compound meets UL 94V-0 flammability ra
