HS1KFL, HS1AFL, High-Efficient Rectifier

HS1AFL * HS1MFL Taiwan Semiconductor 1A, 50V - 1000V High Efficient Surface Mount Rectifier .

HS1AFL-TaiwanSemiconductor.pdf

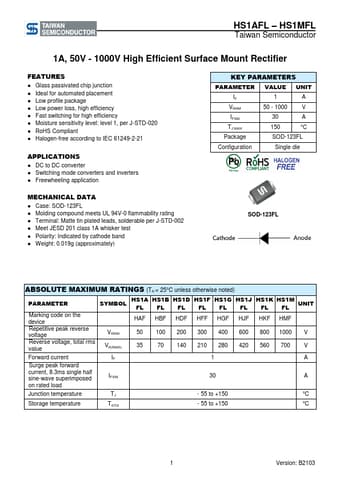

HS1KFL Datasheet Preview — This datasheet PDF includes multiple part numbers: HS1KFL, HS1AFL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HS1KFL, HS1AFL

Manufacturer:

Taiwan Semiconductor

File Size:

446.61 KB

Description:

High-Efficient Rectifier

Note:

This datasheet PDF includes multiple part numbers: HS1KFL, HS1AFL.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Ideal for automated placement
* Low profile package
* Low power loss, high efficiency
* Fast switching for high efficiency
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-free according to IEC 61249-2-

Applications

* DC to DC converter
* Switching mode converters and inverters
* Freewheeling application KEY PARAMETERS PARAMETER VALUE UNIT IF 1 A VRRM 50 - 1000 V IFSM 30 A TJ MAX 150 °C Package SOD-123FL Configuration Single die MECHANICAL DATA
* Case: SOD-123FL
* Molding c
