LL4148 High Speed SMD Switching Diode

Taiwan Semiconductor

Description

LL4148/LL4448/LL914B Taiwan Semiconductor 150mA, 75V Surface Mount Switching Diode .
only.

📥 Download Datasheet

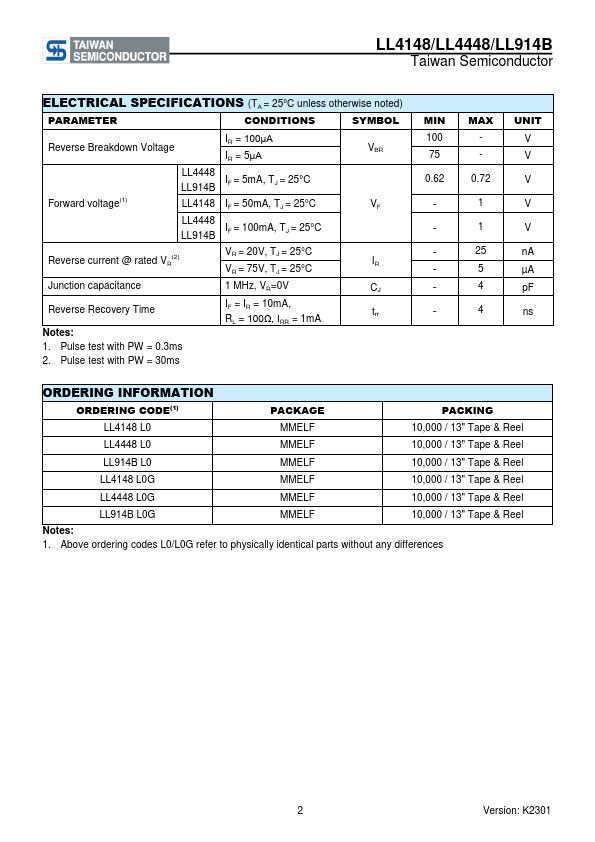

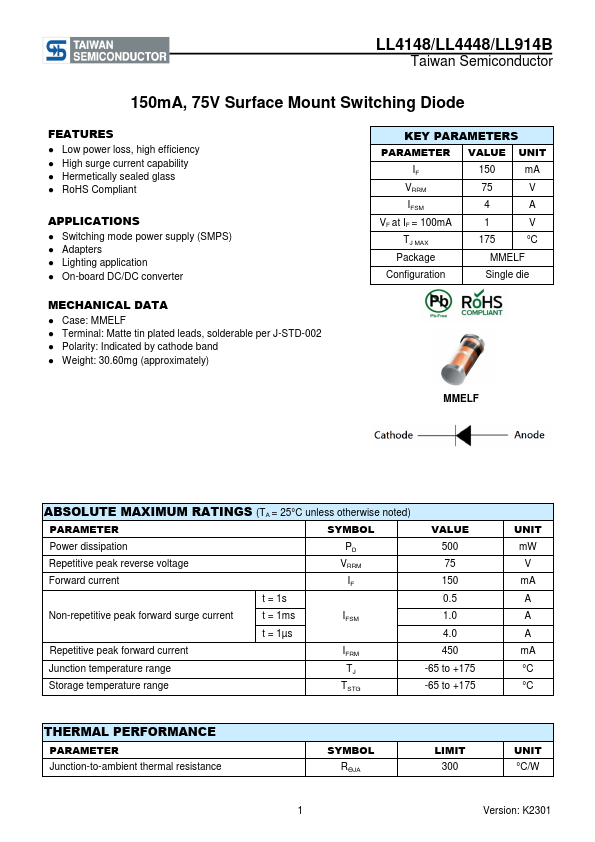

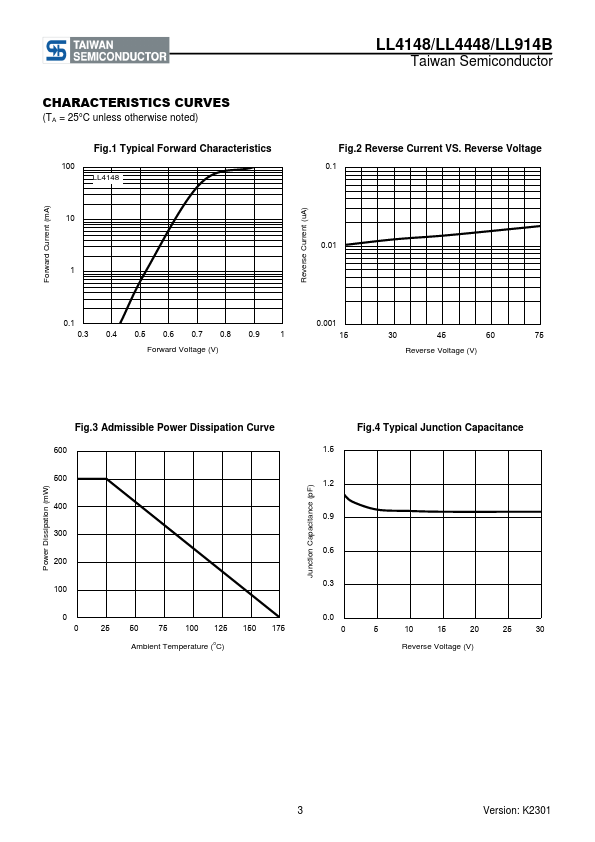

LL4148 Datasheet Preview — Preview of LL4148 PDF

Datasheet Specifications

Part number: LL4148
Manufacturer: Taiwan Semiconductor
File Size: 239.96 KB
Datasheet: LL4148-TaiwanSemiconductor.pdf
Description: High Speed SMD Switching Diode

Features

* Low power loss, high efficiency
* High surge current capability
* Hermetically sealed glass

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* On-board DC/DC converter KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM VF at IF = 100mA TJ MAX Package 150 mA 75 V 4 A 1 V 175 °C MMELF Configuration Single die MECHANICAL DATA
* Case: MM
