MBR20L120CT, MBR20L100CT, Dual Common Cathode Schottky Rectifier

MBR20L100CT * MBR20L120CT Taiwan Semiconductor 20A, 100V - 120V Low VF Schottky Barrier Rectifier .
only.

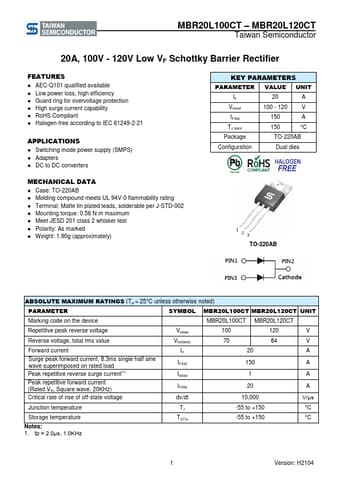

datasheet Preview Page 1 from Datasheet4u.com

MBR20L100CT-TaiwanSemiconductor.pdf

MBR20L120CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20L120CT, MBR20L100CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR20L120CT, MBR20L100CT

Manufacturer:

Taiwan Semiconductor

File Size:

537.42 KB

Description:

Dual Common Cathode Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR20L120CT, MBR20L100CT.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Low power loss, high efficiency
* Guard ring for overvoltage protection
* High surge current capability
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* DC to DC converters KEY PARAMETERS PARAMETER VALUE UNIT IF 20 A VRRM 100 - 120 V IFSM 150 A TJ MAX 150 °C Package TO-220AB Configuration Dual dies MECHANICAL DATA
* Case: TO-220AB
* Molding compound meets UL 94V-
