MBR20L60CTG Switch-mode Power Rectifier

📥 Download Datasheet Datasheet Preview Page 1

Description

Switch-mode Power Rectifier 60 V, 20 A MBR20L60CTG MBRF20L60CTG .

📥 Download Datasheet

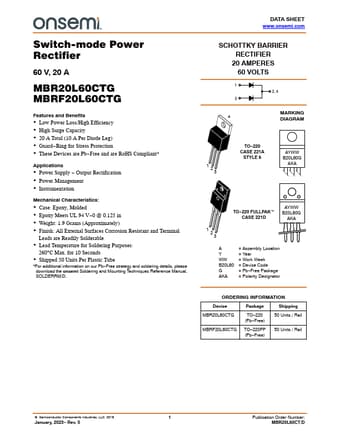

Preview of MBR20L60CTG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low Power Loss/High Efficiency
* High Surge Capacity
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* These Devices are Pb
* Free and are RoHS Compliant

Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics:
* Case: Epoxy, Molded
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces Corrosion Resistant and Term
