MBR20L45CTG Switch-mode Power Rectifier

MBR20L45CTG Description

Switch-mode Power Rectifier 45 V, 20 A MBR20L45CTG, MBRF20L45CTG .

MBR20L45CTG Features

* Low Forward Voltage
* Low Power Loss/High Efficiency
* High Surge Capacity
* 150°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* Guard

MBR20L45CTG Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics:
* Case: Epoxy, Molded
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Weight (Approximately): 1.9 Grams
* Finish: All External Surfaces

📥 Download Datasheet

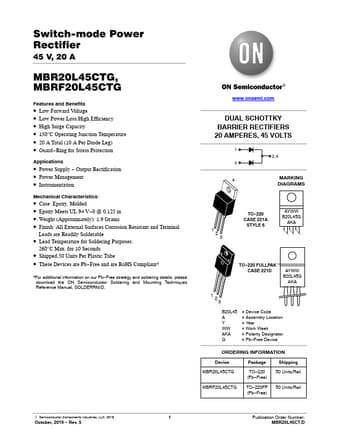

Preview of MBR20L45CTG PDF
datasheet Preview Page 2 datasheet Preview Page 3
