MBRS2045CT, MBRS2035CT Datasheet - Taiwan Semiconductor

MBRS2045CT Dual Common Cathode Schottky Rectifier

G Green compound AEC-Q101 qualified AVERAGE FORWARD A CURRENT (A) RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) FIG.1 FORWARD CURRENT DERATING CURVE 25 20 15 10 5 RESISTIVE OR INDUCTIVELOAD 0 50 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CUR.

MBRS2045CT Features

* - Low power loss, high efficiency - Ideal for automated placement - Guardring for overvoltage protection - High surge current capability - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC

MBRS2035CT-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MBRS2045CT, MBRS2035CT. Please refer to the document for exact specifications by model.

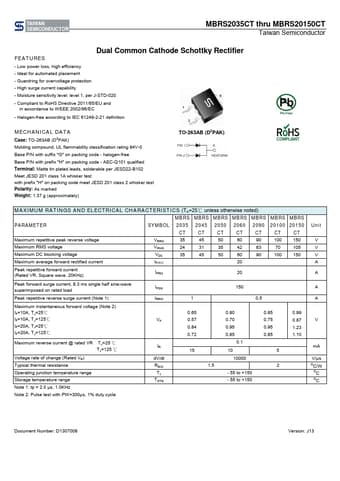

MBRS2045CT Datasheet Preview Page 2 MBRS2045CT Datasheet Preview Page 3

Datasheet Details

Part number:

MBRS2045CT, MBRS2035CT

Manufacturer:

Taiwan Semiconductor

File Size:

213.94 KB

Description:

Dual common cathode schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: MBRS2045CT, MBRS2035CT.
Please refer to the document for exact specifications by model.
