SBT606, SBT601 Single Phase 6.0 AMPS. Silicon Bridge Rectifiers

Taiwan Semiconductor

SBT606 Description

SB6, SBT6 SERIES Single Phase 6.0 AMPS.Silicon Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 6.0 Amperes SBT-6 SB-6 .

SBT606 Features

* a UL Recognized File # E-96005 a Surge overload rating 200 amperes peak a Low forward voltage drop a High temperature soldering guaranteed: 250+ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension a Small size, simple installation a Leads solderable per MIL-STD-202 Method 208

📥 Download Datasheet

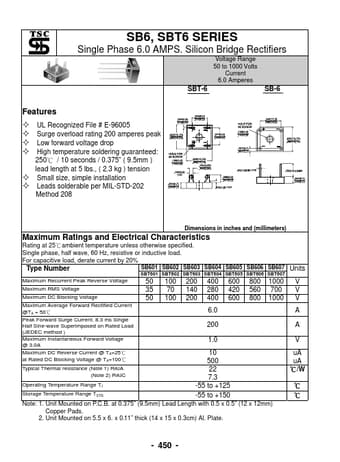

SBT606 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBT606, SBT601. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SBT606, SBT601
Manufacturer: Taiwan Semiconductor
File Size: 106.18 KB
Datasheet: SBT601-TaiwanSemiconductor.pdf
Description: Single Phase 6.0 AMPS. Silicon Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: SBT606, SBT601.
Please refer to the document for exact specifications by model.
