SK55CH, SK52CH, Schottky Barrier Surface Mount Rectifier

SK52CH * SK520CH Taiwan Semiconductor 5A, 20V - 200V Schottky Barrier Surface Mount Rectifier .
only.

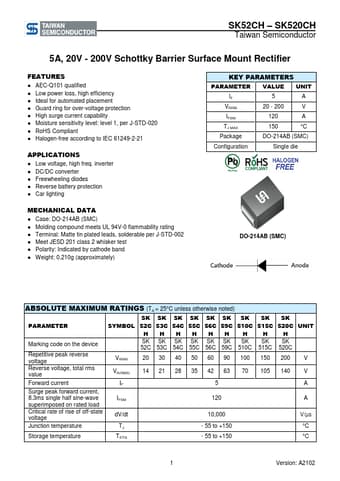

datasheet Preview Page 1 from Datasheet4u.com

SK52CH-TaiwanSemiconductor.pdf

SK55CH Datasheet Preview — This datasheet PDF includes multiple part numbers: SK55CH, SK52CH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SK55CH, SK52CH

Manufacturer:

Taiwan Semiconductor

File Size:

453.39 KB

Description:

Schottky Barrier Surface Mount Rectifier

Note:

This datasheet PDF includes multiple part numbers: SK55CH, SK52CH.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified
* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for over-voltage protection
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant
* Halogen-free according to IEC 61249-

Applications

* Low voltage, high freq. inverter
* DC/DC converter
* Freewheeling diodes
* Reverse battery protection
* Car lighting KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 5 A 20 - 200 V 120 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DAT
