SMBJ20, SMBJ5.0 Datasheet - Taiwan Semiconductor

SMBJ20 Surface Mount Transient Voltage Suppressor

SMBJ20 Features

* Ideal for automated placement

* Glass passivated junction

* Excellent clamping capability

* Fast response time: Typically less than 1.0ps

* Typical IR less than 1μA above 10V

* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)

* Moisture sensitivity level: level 1, per J-STD-020

SMBJ20, SMBJ5.0 Datasheet

This datasheet PDF includes multiple part numbers: SMBJ20, SMBJ5.0. Please refer to the document for exact specifications by model.

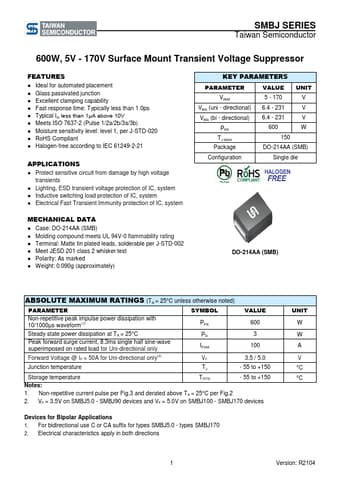

SMBJ20 Datasheet Preview Page 2 SMBJ20 Datasheet Preview Page 3

Datasheet Details

Part number:

SMBJ20, SMBJ5.0

Manufacturer:

Taiwan Semiconductor

File Size:

456.12 KB

Description:

Surface mount transient voltage suppressor.

This datasheet PDF includes multiple part numbers: SMBJ20, SMBJ5.0. Please refer to the document for exact specifications by model.
