SMBJ22

Surface Mount Transient Voltage Suppressor

SMBJ22 Features

* Ideal for automated placement

* Glass passivated junction

* Excellent clamping capability

* Fast response time: Typically less than 1.0ps

* Typical IR less than 1μA above 10V

* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)

* Moisture sensitivity level: level 1, per J-STD-020

SMBJ22 Datasheet (456.12 KB)

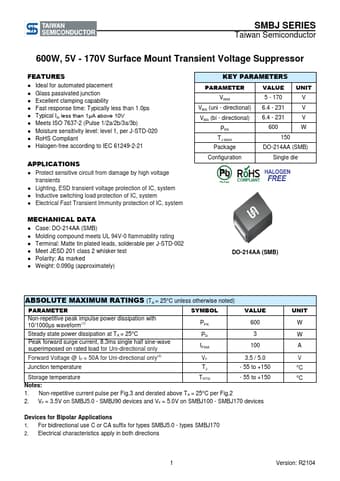

Preview of SMBJ22 PDF

Datasheet Details

Part number:

SMBJ22

Manufacturer:

Taiwan Semiconductor

File Size:

456.12 KB

Description:

Surface mount transient voltage suppressor.
