SMBJ24A, SMBJ5.0 Surface Mount Transient Voltage Suppressor

SMBJ24A Description

SMBJ SERIES Taiwan Semiconductor 600W, 5V - 170V Surface Mount Transient Voltage Suppressor .

SMBJ24A Features

* Ideal for automated placement
* Glass passivated junction
* Excellent clamping capability
* Fast response time: Typically less than 1.0ps
* Typical IR less than 1μA above 10V
* Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
* Moisture sensitivity level: level 1, per J-STD-020

SMBJ24A Applications

* Protect sensitive circuit from damage by high voltage transients
* Lighting, ESD transient voltage protection of IC, system
* Inductive switching load protection of IC, system
* Electrical Fast Transient Immunity protection of IC, system KEY PARAMETERS PARAMETER VALUE UNIT VWM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMBJ24A, SMBJ5.0. Please refer to the document for exact specifications by model.

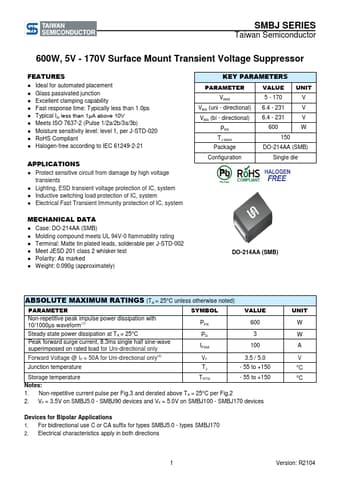

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMBJ24A, SMBJ5.0
Manufacturer
Taiwan Semiconductor
File Size
456.12 KB
Datasheet
SMBJ5.0-TaiwanSemiconductor.pdf
Description
Surface Mount Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SMBJ24A, SMBJ5.0.
Please refer to the document for exact specifications by model.
