TD2576 - 3A 52KHz PWM Buck DC/DC Converter

TD2576 Description

T  echcode®       3A 52KHz PWM Buck DC/DC Converter DATASHEET TD2576 General .
Features    The TD2576 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators.

TD2576 Features

*   The TD2576 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators. These devices are available in fixed output voltage of 3.3V, 5V, and an adjustable output version. Both versions are capable of driving a 3A load with excellent line and load regulation. R

TD2576 Applications

* z Simple High-efficiency step-down regulator z On-card switching regulators z Positive to negative converter z LCD monitor and LCD TV z DVD recorder and PDP TV z Battery charger z Step-down to 3.3V for microprocessors Package Types                        TO220B­5L                  TO220­5L

📥 Download Datasheet

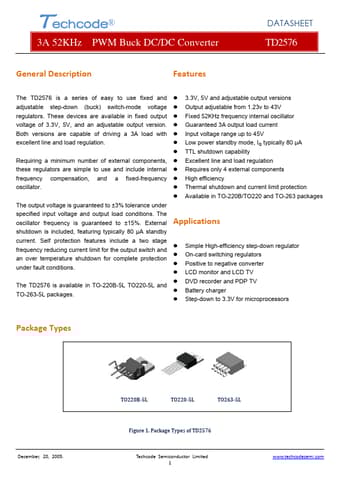

Preview of TD2576 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD2576
Manufacturer
Techcode
File Size
1.16 MB
Datasheet
TD2576-Techcode.pdf
Description
3A 52KHz PWM Buck DC/DC Converter
