TD25A-SP1 - Current Transducers

TD25A-SP1 Description

TopsTek Current Transducers TD25A-SP1 ..TD400A-SP1 TD 25A~400A-SP1 .

TD25A-SP1 Features

* High reliability Hall effect device
* Compact and light weight
* Quick response speed (7 µsec)
* Excellent linearity of the output voltage over a wide input range
* Excellent frequency response (> 50 kHz)
* Low power consumption (12 mA nominal)

TD25A-SP1 Applications

* UPS systems
* Industrial robots
* NC tooling machines
* Controller of elevators
* Process control devices
* AC and DC servo systems
* Speed controller of motors
* Controller of electrical vehicles
* Inverter-controlled welding machines

📥 Download Datasheet

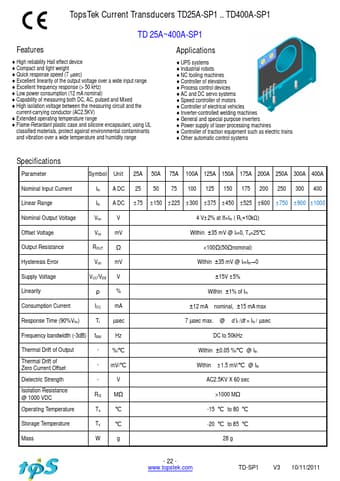

Preview of TD25A-SP1 PDF
datasheet Preview Page 2

Datasheet Details

Part number
TD25A-SP1
Manufacturer
Topstek
File Size
417.01 KB
Datasheet
TD25A-SP1-Topstek.pdf
Description
Current Transducers
