TD25A-LTC, TD20A-LTC - Current Transducers

TD25A-LTC Description

Topstek Current Transducers TD4A..TD25A-LTC .

TD25A-LTC Features

* TD 4A~25A-LTC
* Highly reliable Hall Effect device
* Compact and light weight
* Fast response time
* Excellent linearity of the output voltage over a wide input range
* Excellent frequency response (> 25 kHz)
* Low power consumption (12 mA nominal)

TD25A-LTC Applications

* UPS systems
* Industrial robots
* Elevator controllers
* NC tooling machines
* Motor speed controller
* Process control devices
* Leakage current detection
* AC and DC servo systems
* General and special purpose inverters

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TD25A-LTC, TD20A-LTC. Please refer to the document for exact specifications by model.

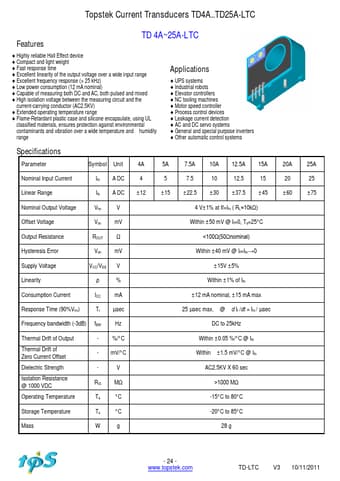

datasheet Preview Page 2

Datasheet Details

Part number
TD25A-LTC, TD20A-LTC
Manufacturer
Topstek
File Size
297.07 KB
Datasheet
TD20A-LTC-Topstek.pdf
Description
Current Transducers
Note
This datasheet PDF includes multiple part numbers: TD25A-LTC, TD20A-LTC.
Please refer to the document for exact specifications by model.
