TD3111

2.2A 52KHZ 32V PWM Buck DC/DC Converter

TD3111 Features

*  2.2A Constant Output Current  80mΩ RDSON Internal Power PMOSFET Switch  Up to 95% Efficiency  Fixed 52KHz Frequency  Wide 3.6V to 32V Input Voltage Range  Output Adjustable from 0.8V to 30V  Built in Frequency Compensation  Built in Thermal Shutdown Function  Built in Current Limit Functio

TD3111 General Description

The TD3111 is a 52 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 2.2A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circuit, er.

TD3111 Datasheet (354.11 KB)

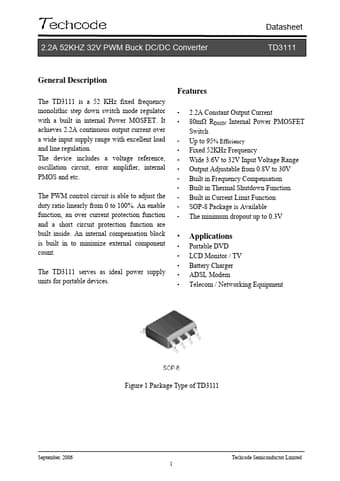

Preview of TD3111 PDF

Datasheet Details

Part number:

TD3111

Manufacturer:

Techcode

File Size:

354.11 KB

Description:

2.2a 52khz 32v pwm buck dc/dc converter.
