TD3112 - 2.2A 380KHz 32V PWM Buck DC/DC Converter

TD3112 Description

T  echcode®       2.2A 380KHz 32V PWM Buck DC/DC Converter DATASHEET TD3112 General .
Features    The TD3112 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET.

TD3112 Features

*   The TD3112 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 2.2A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circui

TD3112 Applications

* portable devices.   z Portable DVD z LCD Monitor / TV z Battery Charger z ADSL Modem z Telecom / Networking Equipment  Package Types                   Figure 1. Package Types of TD3112  December,  20,  2005.                                                        Techcode  Semiconductor  Limited

📥 Download Datasheet

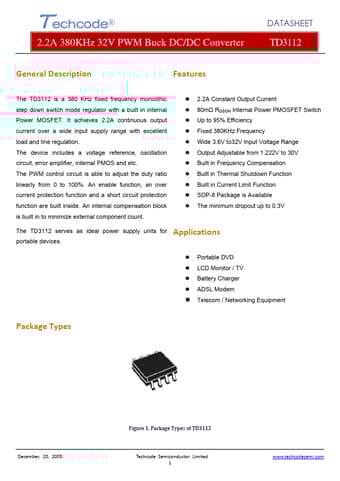

Preview of TD3112 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD3112
Manufacturer
Techcode
File Size
627.10 KB
Datasheet
TD3112-Techcode.pdf
Description
2.2A 380KHz 32V PWM Buck DC/DC Converter
