FE6001 (FE6001 - FE6005) 4-PORT WAVEGUIDE DIFFERENTIAL PHASE SHIFT CIRCULATOR

Designed for use in both high-peak and high-mean power applications, TEMEX COMPONENTS differential phase shift circulators offer high isolation while maintaining low-insertion loss. These ruggedly constructed circulators can operate under the most severe environmental conditions, according to MIL-SP.

FE6001 Features

* With the addition of a suitable waveguide load and a dummy load on the appropriate port, a 4-port differential phase shift circulator may be operated as a high-power isolator. The reﬂected power which will be absorbed in the dummy load, or the output mismatch - (V.S.W.R.) should be speciﬁed when or

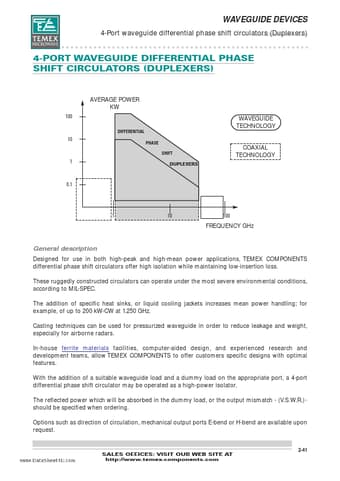

FE6004_Temex.pdf

FE6001 Datasheet Preview — This datasheet PDF includes multiple part numbers: FE6001, FE6004. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FE6001, FE6004

Manufacturer:

Temex

File Size:

146.19 KB

Description:

(fe6001 - fe6005) 4-port waveguide differential phase shift circulator.

Note:

This datasheet PDF includes multiple part numbers: FE6001, FE6004.
Please refer to the document for exact specifications by model.
