FE6004, (FE6001 - FE6005) 4-PORT WAVEGUIDE DIFFERENTIAL PHASE SHIFT CIRCULATOR

WAVEGUIDE DEVICES 4-Port waveguide differential phase shift circulators (Duplexers) www.DataSheet4U.com MICROWAVE 4-PORT WAVEGUIDE DIFFERENTIAL PHASE.
Designed for use in both high-peak and high-mean power applications, TEMEX COMPONENTS differential phase shift circulators offer high isolation while.

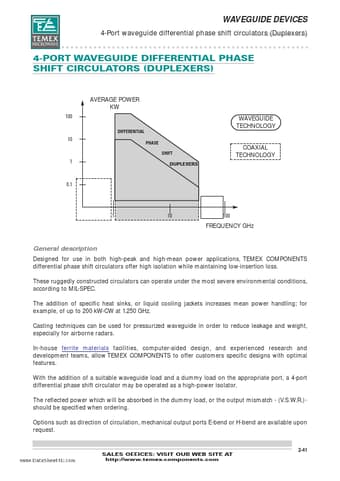

datasheet Preview Page 1 from Datasheet4u.com

FE6004_Temex.pdf

FE6004 Datasheet Preview — Preview of FE6004 PDF

Datasheet Details

Part number:

FE6004

Manufacturer:

Temex

File Size:

146.19 KB

Description:

(FE6001 - FE6005) 4-PORT WAVEGUIDE DIFFERENTIAL PHASE SHIFT CIRCULATOR

Features

* With the addition of a suitable waveguide load and a dummy load on the appropriate port, a 4-port differential phase shift circulator may be operated as a high-power isolator. The reﬂected power which will be absorbed in the dummy load, or the output mismatch - (V. S. W. R. ) should be speciﬁed when or

Applications

* TEMEX COMPONENTS differential phase shift circulators offer high isolation while maintaining low-insertion loss. These ruggedly constructed circulators can operate under the most severe environmental conditions, according to MIL-SPEC. The addition of speciﬁc heat sinks, or liquid cooling jackets in
