FE6005 Datasheet - Temex

FE6005 (FE6001 - FE6005) 4-PORT WAVEGUIDE DIFFERENTIAL PHASE SHIFT CIRCULATOR

Designed for use in both high-peak and high-mean power applications, TEMEX COMPONENTS differential phase shift circulators offer high isolation while maintaining low-insertion loss. These ruggedly constructed circulators can operate under the most severe environmental conditions, according to MIL-SP.

FE6005 Features

* With the addition of a suitable waveguide load and a dummy load on the appropriate port, a 4-port differential phase shift circulator may be operated as a high-power isolator. The reflected power which will be absorbed in the dummy load, or the output mismatch - (V.S.W.R.) should be specified when or

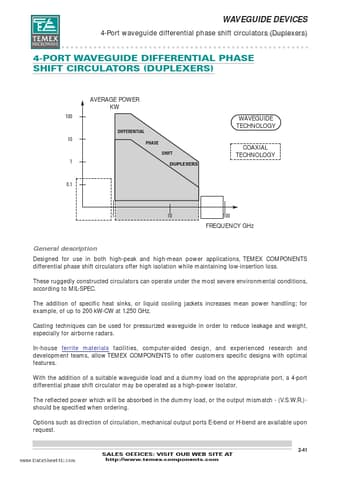

FE6005 Datasheet (146.19 KB)

Preview of FE6005 PDF

Datasheet Details

Part number:

FE6005

Manufacturer:

Temex

File Size:

146.19 KB

Description:

(fe6001 - fe6005) 4-port waveguide differential phase shift circulator.
