SMD10P06L Datasheet - Temic

SMD10P06L - P-Channel Transistor

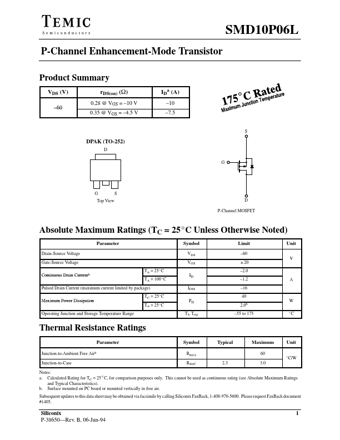

SMD10P06L P-Channel Enhancement-Mode Transistor Product Summary VDS (V) 60 rDS(on) (W) 0.28 @ VGS = 10 V 0.35 @ VGS = 4.5 V IDa (A) 10 7.5 DPAK (TO-252) D S G G S Top View D P-Channel MOSFET Absolute Maximum Ratings (TC = 25_C Unless Otherwise Noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage Continuous Drain Currentb TA = 25_C TA = 100_C Pulsed Drain Current (maximum current limited by package) Maximum P.
