78Q2133, 78Q2123, MicroPHY 10/100BASE-TX Transceiver

78Q2123/78Q2133 MicroPHY™ 10/100BASE-TX Transceiver Simplifying System IntegrationTM DATA SHEET April 2010 .
The 78Q2123 and 78Q2133, MicroPHY , are the smallest 10BASE-T/100BASE-TX Fast Ethernet transceivers in the market.

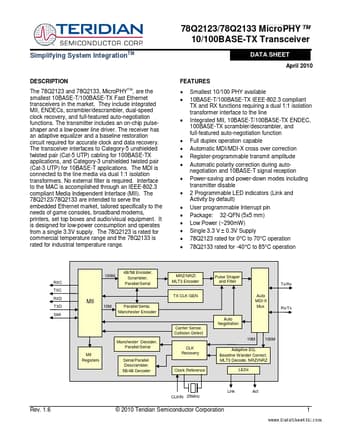

datasheet Preview Page 1 from Datasheet4u.com

78Q2123_TeridianSemiconductor.pdf

78Q2133 Datasheet Preview — This datasheet PDF includes multiple part numbers: 78Q2133, 78Q2123. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

78Q2133, 78Q2123

Manufacturer:

Teridian Semiconductor

File Size:

774.93 KB

Description:

MicroPHY 10/100BASE-TX Transceiver

Note:

This datasheet PDF includes multiple part numbers: 78Q2133, 78Q2123.
Please refer to the document for exact specifications by model.

Features

* Smallest 10/100 PHY available 10BASE-T/100BASE-TX IEEE-802.3 compliant TX and RX functions requiring a dual 1:1 isolation transformer interface to the

Applications

* and Category-3 unshielded twisted pair (Cat-3 UTP) for 10BASE-T applications. The MDI is connected to the line media via dual 1:1 isolation transformers. No external filter is required. Interface to the MAC is accomplished through an IEEE-802.3 compliant Media Independent Interface (MII). The 78Q21
