78Q8392LA03, Low-Power Ethernet Coaxial Transceiver

www.DataSheet4U.com 78Q8392L/A03 Low Power Ethernet Coaxial Transceiver November 2008 .
The 78Q8392L/A03 Ethernet Transceiver is a replacement for the SSI/TDK/Teridian 78Q8392L/A02 coax line transmitter/receiver.

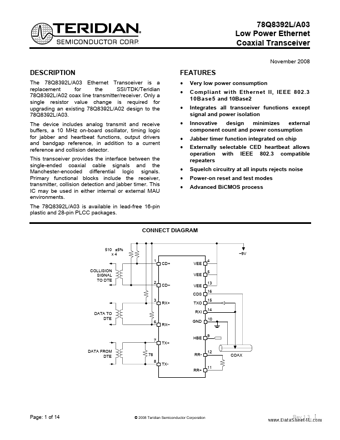

datasheet Preview Page 1 from Datasheet4u.com

78Q8392LA03_TeridianSemiconductor.pdf

78Q8392LA03 Datasheet Preview — Preview of 78Q8392LA03 PDF

Datasheet Details

Part number:

78Q8392LA03

Manufacturer:

Teridian Semiconductor

File Size:

323.00 KB

Description:

Low-Power Ethernet Coaxial Transceiver

Features

* Very low power consumption Compliant w ith Ethernet II, IEEE 802.3 10Base5 and 10Base2 Integrates all transceiver functions except signal and power isolation Innovative design minimizes external component count and power consumption Jabber

Applications

* where the 78Ω drop cable is not used, higher resistor values (up to 1.5k) may be used to save power. Receive Output. Balanced differential line driver outputs from the Receiver. These outputs also require 510Ω pulldown resistors. Transmit Input. Balanced differential line receiver inputs to the Tra
