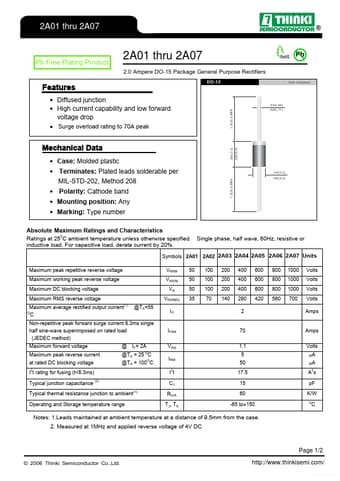

Part number:
2A07
Manufacturer:
Thinki Semiconductor
File Size:
361.75 KB
Description:
General purpose rectifiers.
* Diffused junction
* High current capability and low forward voltage drop
* Surge overload rating to 70A peak Unit: inch(mm) .034(.86) 1.0(25.4)MIN. .028(.71) .300(7.6)
* Case: Molded plastic
* Terminates: Plated leads solderable per MIL-STD-202, Method
2A07
Thinki Semiconductor
361.75 KB
General purpose rectifiers.
