MUR1560 - 15.0 Ampere Glass Passivated Chip Ultrafast Recovery Rectifier Diodes

This page provides the datasheet information for the MUR1560, a member of the MUR1505 15.0 Ampere Glass Passivated Chip Ultrafast Recovery Rectifier Diodes family.

Datasheet Summary

Features

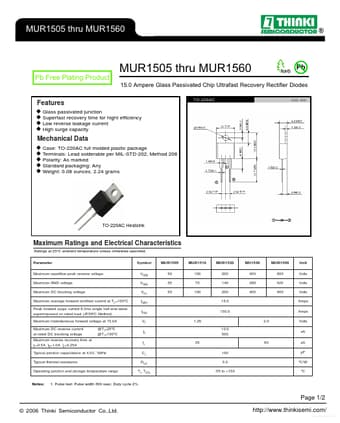

Glass passivated junction Superfast recovery time for hight efficiency Low reverse leakage current High surge capacity TO-220AC Pb 15.0 Ampere Glass Passivated Chip Ultrafast Recovery Rectifier Diodes Unit: mm Mechanical Data Case: TO-220AC full molded plastic package Terminals: Lead solderable per MIL-STD-202, Method 208 Polarity: As marked Standard packaging: Any Weight: 0.08 ounces, 2.24 grams 2 TO-220AC Heatsink Maximum Ratings and Electrical Characteristics Ratings a.

Thinki Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	MUR1560
Manufacturer	Thinki Semiconductor
File Size	435.91 KB
Description	15.0 Ampere Glass Passivated Chip Ultrafast Recovery Rectifier Diodes
Datasheet	MUR1560 Datasheet
