S5MBF Surface Mount General Purpose Silicon Rectifiers

Description

SR Tinysemi Surface Mount General Purpose Silicon Rectifiers .

📥 Download Datasheet

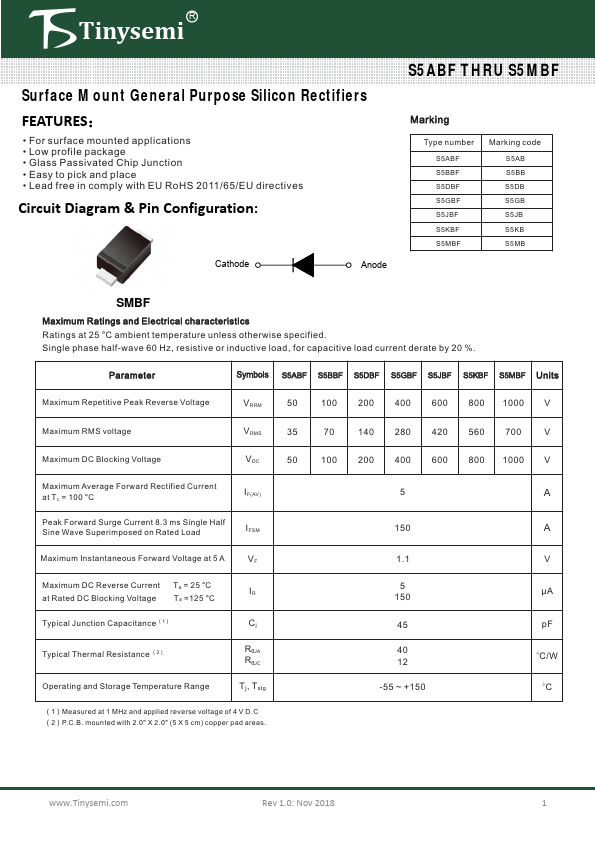

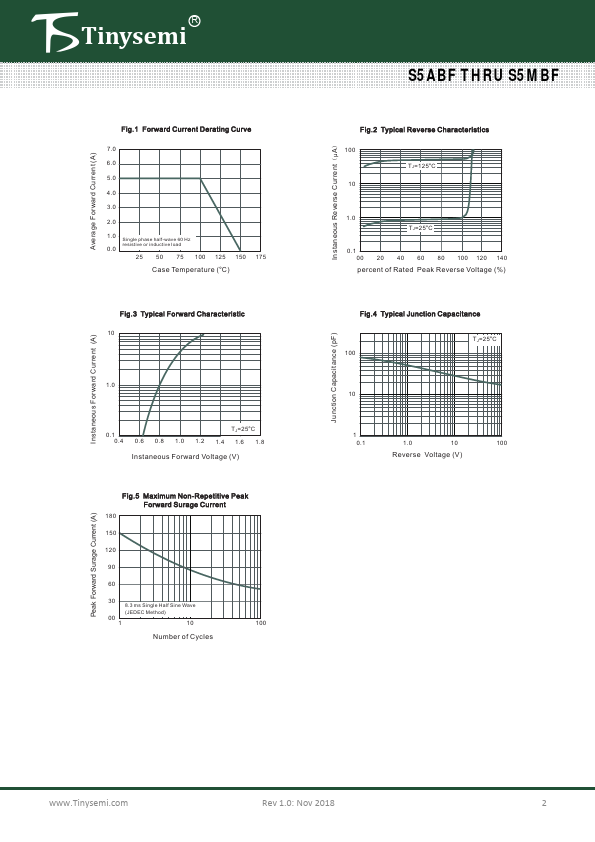

S5MBF Datasheet Preview — Preview of S5MBF PDF

Datasheet Specifications

Part number: S5MBF
Manufacturer: Tinysemi
File Size: 540.11 KB
Datasheet: S5MBF-Tinysemi.pdf
Description: Surface Mount General Purpose Silicon Rectifiers

Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives Circuit Diagram & Pin Configuration: Cathode Anode S5ABF THRU S5MBF Marking Type number S5ABF S5BBF S5DBF S5GBF S5JBF S5KBF S5
