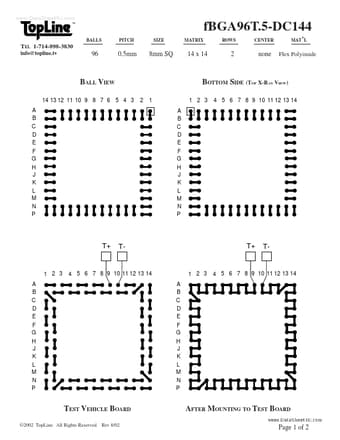

www.DataSheet4U.com TM fBGA96T.5-DC144 BALLS PITCH SIZE MATRIX ROWS CENTER MAT’L TEL 1-714-898-3830 info@topline.tv 96 0.5mm 8mm SQ 14 x 14 2 none Flex Polyimide BALL VIEW 14 13 12 11 10 9 8 7 6 5 4 3 A B C D E F G H J K L M N P 2 1 A B C D E F G H J K L M N P BOTTOM SIDE (TOP X-RAY VIEW) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 T+ T- T+ T- 1 2 3 A B C D E F G H J K L M N P 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H J K L M N P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 TEST VEHICLE BOARD ©200.
