XC6206, Positive Voltage Regulators

XC6206 Series ETR03005-008b *GENERAL .
The XC6206 series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming techno.

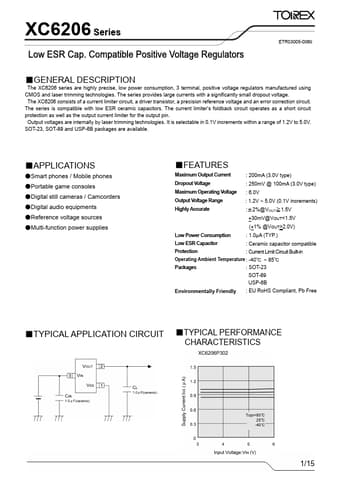

datasheet Preview Page 1 from Datasheet4u.com

XC6206_TorexSemiconductor.pdf

XC6206 Datasheet Preview — Preview of XC6206 PDF

Datasheet Details

Part number:

XC6206

Manufacturer:

Torex Semiconductor

File Size:

2.09 MB

Description:

Positive Voltage Regulators

Features

* Maximum Output Current : 200mA (3.0V type) Dropout Voltage : 250mV @ 100mA (3.0V type) Maximum Operating Voltage : 6.0V Output Voltage Range : 1.2V ~ 5.0V (0.1V increments) Highly Accurate :±2%@VOUT≧1.5V +30mV@VOUT2.0V) Low Power Consumption : 1.0μA (TYP. ) Low ESR Capa

Applications

* Smart phones / Mobile phones
* Portable game consoles
* Digital still cameras / Camcorders
* Digital audio equipments
* Reference voltage sources
* Multi-function power supplies
