XC6203

Large Current Positive Voltage Regulators

XC6203 Features

* Maximum Output Current : 400mA (3.3V) Maximum Operating Voltage : 8.0V Output Voltage Range : 1.8V ~ 6.0V (Selectable in 0.1V increments) Highly Accurate : ±2% Low Power Consumption : 8.0μA (TYP.) Line Regulation : 0.2% / V (TYP.) Output Voltage Temperature Characteristics : ±100ppm/℃ (TY

XC6203 General Description

The XC6203 series are highly precise, low power consumption, 3 terminal positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6203P consists of a driver transistor, a current limiter, .

XC6203 Datasheet (1.17 MB)

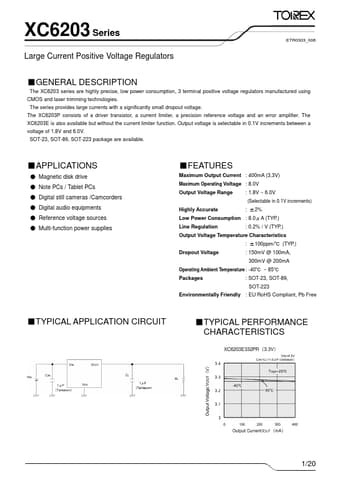

Preview of XC6203 PDF

Datasheet Details

Part number:

XC6203

Manufacturer:

Torex Semiconductor

File Size:

1.17 MB

Description:

Large current positive voltage regulators.
