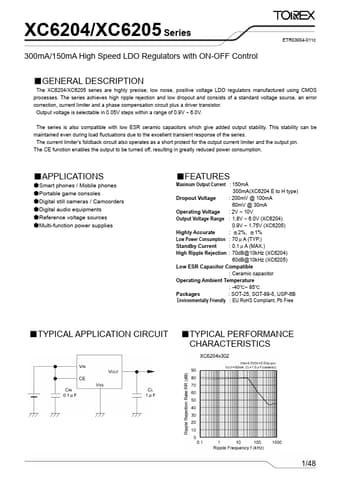

XC6205 300mA/150mA High Speed LDO Regulators

The XC6204/XC6205 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a.

XC6205 Features

* Maximum Output Current : 150mA 300mA(XC6204 E to H type) Dropout Voltage : 200mV @ 100mA 60mV @ 30mA Operating Voltage : 2V ~ 10V Output Voltage Range : 1.8V ~ 6.0V (XC6204) 0.9V ~ 1.75V (XC6205) Highly Accurate : ±2%, ±1% Low Power Consumption : 70μA (TYP.) Standby Current : 0.1μA (MAX.)
