XC6206 - Positive Voltage Regulators

XC6206 Description

XC6206 Series ETR03005-009 *GENERAL .
The XC6206 series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming techno.

XC6206 Features

* Maximum Output Current : 200mA (3.0V type) Dropout Voltage : 250mV @ 100mA (3.0V type) Maximum Operating Voltage : 6.0V Output Voltage Range : 1.2V ~ 5.0V (0.1V increments) Highly Accurate :±2%@VOUT≧1.5V +30mV@VOUT2.0V) Low Power Consumption : 1.0μA (TYP. ) Low ESR Capa

XC6206 Applications

* Smart phones / Mobile phones
* Portable game consoles
* Digital still cameras / Camcorders
* Digital audio equipments
* Reference voltage sources
* Multi-function power supplies

📥 Download Datasheet

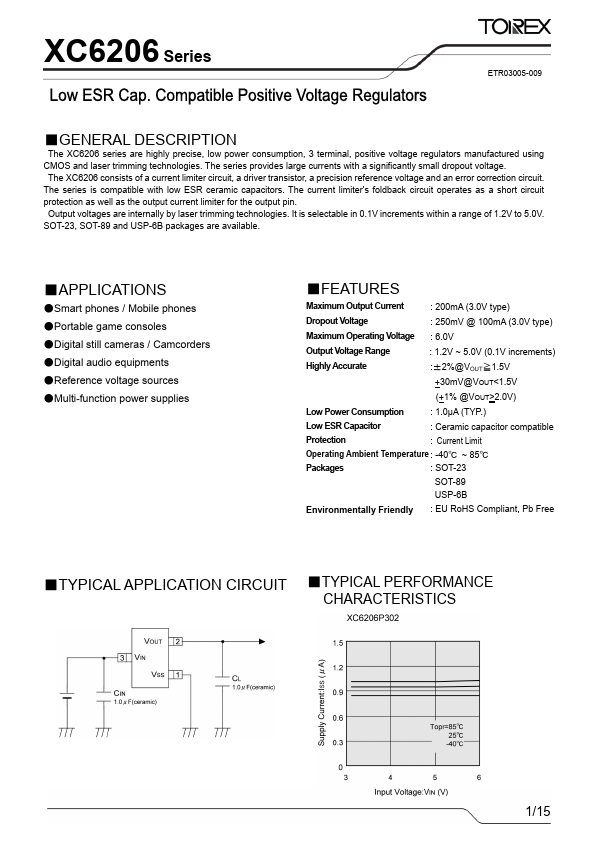

Preview of XC6206 PDF

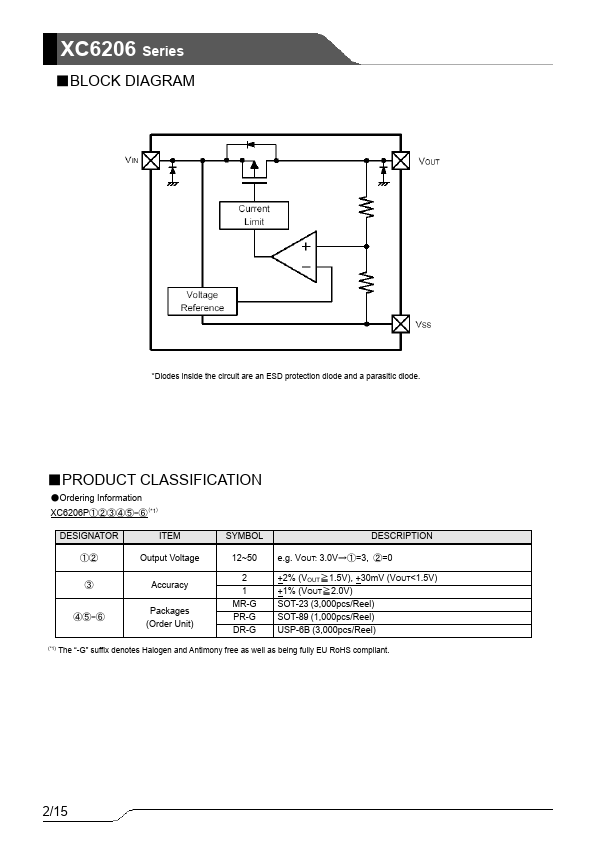

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC6206
Manufacturer
Torex Semiconductor
File Size
1.91 MB
Datasheet
XC6206-TorexSemiconductor.pdf
Description
Positive Voltage Regulators
